I just bought a Multi-Tool Grinder at a estate sale for cheap money. It is not working, fhe original owner told me it was working fine and one day he went out to use it and it wouldn't start. He thought it was a bad capacitor. Long story short he discombobulated the wiring. Anyone on here have a wiring diagram? I contacted Multi-Tool been a week and a couple Emails still haven't heard anything. Figured out why the grinder wouldn't start. It must have tipped over? The hard grinding wheel housing is bent up into the grinding wheel and jammed the armature. That in turn burned out I think it's a time delayed electronic relay (it smells burned)? Any help would be Great!

So I figured out what that relay thingy is. It's an electronic starter switch that takes the place of the old-fashioned centrifugal starter switchs they use to use. It has a 3 second time delay that drops the Start Cap out of the circuit once the motor gets going. Whish they would get back to me about this thing. Would like to get it running again! Maybe sell it for something else I need??

Gliden07 said:
So I figured out what that relay thingy is. It's an electronic starter switch that takes the place of the old-fashioned centrifugal starter switchs they use to use. It has a 3 second time delay that drops the Start Cap out of the circuit once the motor gets going. Whish they would get back to me about this thing. Would like to get it running again! Maybe sell it for something else I need??
Click to expand...
Can you post a couple of photos of it?

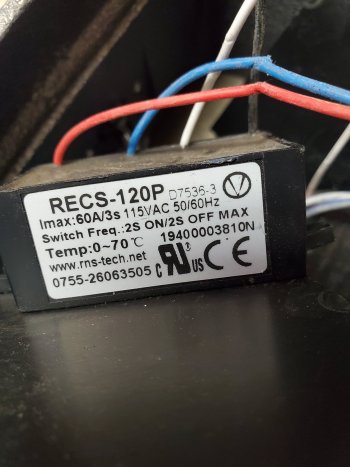

This is it POS Chinese junk. If I can get the parts I'm going replace all the electric, switch, relay and cap! Fixed the bent up grinder wheel housing with a 20Ton shop press. The housing is actually made from steel!


Attachments

  • 20210131_132445.jpg
    2 MB · Views: 0
Gliden07 said:
This is it POS Chinese junk. If I can get the parts I'm going replace all the electric, switch, relay and cap! Fixed the bent up grinder wheel housing with a 20Ton shop press. The housing is actually made from steel!
Click to expand...
It sounds like you are on the right track.
