My first Liner Lock

[Freds Edge]

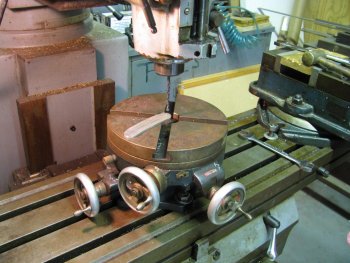

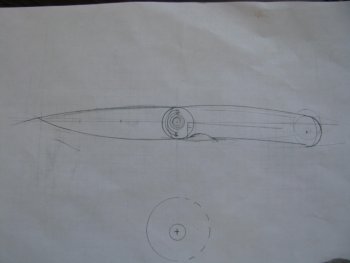

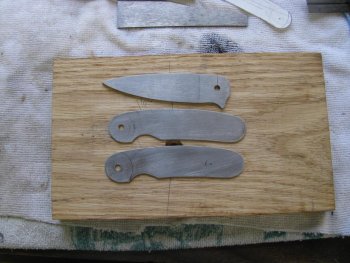

Good evening guy's , just wanted to post a few pix's of my first liner lock and to get your thoughts , this is not really a wip , but kind a work along so I don't put my foot in it .Pix's are of blade and liners rouged , a drawing and a rotary table I got from my neighbor.



[Frank Niro]

I'll be looking for more ! Thanks. Frank



[TacticallySharp]

Now that's a project worth watching along with.



[Freds Edge]

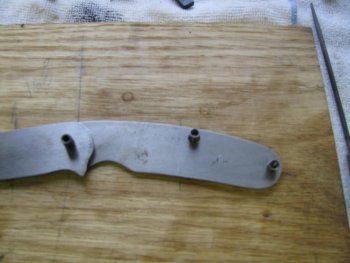

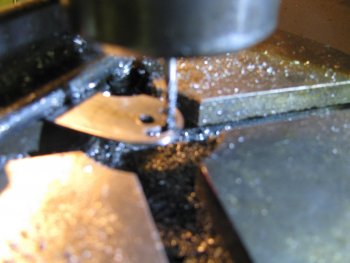

A little more progress today, stand offs drilled , spacer about done , the cam for my stops milled and pivots holes drilled and reamed and stop pin hole drilled . Also sat the Grandkids in the morning . Tomorrow I will cut the liner and get the blade ready for heat treat and stuff .



[Frank Niro]

Okay Fred, I'm a bit embarrassed but that liner cut may be a bit short at 1 1/4" 1 1?2 might be better. Frank



[Freds Edge]

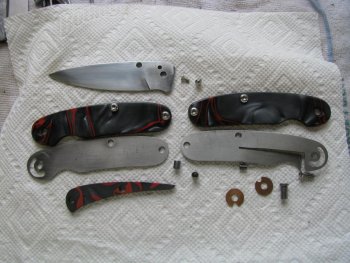

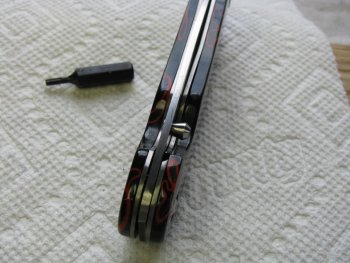

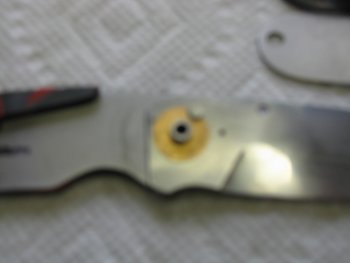

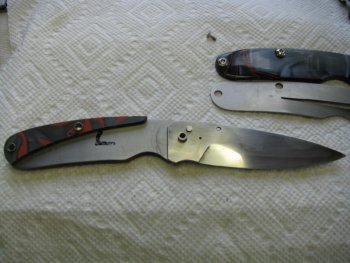

Well my first Liner Lock is done , I enjoyed building the folder and except for a bugaboo I have yet to work out I am happy with the outcome . Hear are a few pix's of the finished knife.
