can i get a hot dog???

[Guindesigns]

Hey dogs I need some help from some more experienced dogs out there on forging first n foremost I need help find a forge I have a friend who is willing to help build one but I need blueprints nothing fancy just something that will get job done a link to blueprints or where I can find them would be helpful thanks



[HHH Knives]

There are lots of posts about this already written here. I did a quick search of knifedogs and heres a link to the results. You should be able to find most of the info your looking for HERE

https://www.google.com/search?q=knifedogs+how+to+make+a+forge+site:knifedogs.com&espv=210&es_sm=122

Here is another link that may be very useful! http://knifedogs.com/showthread.php?21682-Build-A-Gas-Forge

And this one http://woodcraft.if.ua/document/gas-forge-construction-manual.pdf

or this one. KD Gas Forge Tutorial.pdf‎



[Doug Lester]

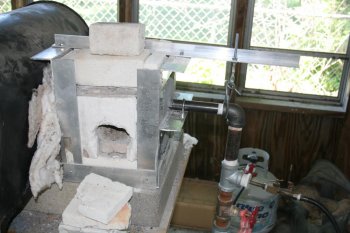

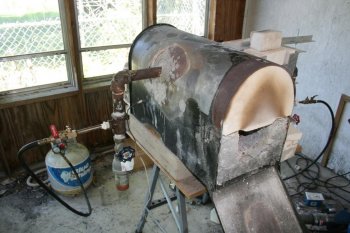

I've never worked with a blue print. Both of the forges have blown burners that are powered by a bounce house blower that I use a length of black accordion drainage tube to switch the air supply back and forth. The first one is cast from Cast-O-Lite rammable refractory with aluminum angle irons to hold the soft refractory brick on the top and bottom. The other was built from a large mailbox (I bet you had that figured out already). It's lined with 3" of ceramic fiber matting that was then covered with Mizzou refractory. I made the hole in the refractory a little larger than the burner tube and crammed the refractory around it to hold the burner pipe in. The pipe does not come all the way out but is protected with a bit of the refractory to slow down it burning out. The outside of the mailbox was patched with some Rutlands cement patch when I had to rebuild the burner on it once.

Both has pass-through ports on the back and the "doors" are made from high temperature insulation board.

Doug
