World's best thread about grinders...

[BossDog]

We are going to make this the world's best thread about knife grinders

Post pictures of your grinders here. Let's see every kind and every gadget that you use with them.



some one sent a couple pic's of their FrankenGrinder....

let's see them..



[Jeff Pearce]

here are mine



[silver_pilate]

KMG (2hp):

VFD (TECO FM50):

Clean box:

Remote mounted controls:

Attachments:

--nathan



[silver_pilate]

EERF grinder (uses same VFD and KMG attachments; also 2 hp):

9" flat and beveled disk (same VFD, 3/4 hp):

--nathan



[silver_pilate]

Grizzly 2x72":

4.5" angle grinder :

--nathan



[Cubane]

This was on another forum recently

http://gonza-rytec.rajce.idnes.cz/brusky/



[HELLGAP]

Well here is mine,its as good anyone will ever need.



[DiverTexas]

Almost embarassed to post it, but you have to start somewhere.



[EdCaffreyMS]

OK....Here are mine:

1st off my very favorite tool, KMG with the "Caffrey" Platen

Next, The first "real" grinder I ever purchased..and after almost 30 years and several new sets of bearings, she's still grinding away....my Wilton Square Wheel:

Next the Beaumont VFD disc grinder:

And finally, a disc for slippies that I pieced together. Got the motor and controller off Ebay for a scream'in deal, a friend built the super heavy weight disc for me, and the stand/table came from Tru-Grit:



[Curtiss Knives]

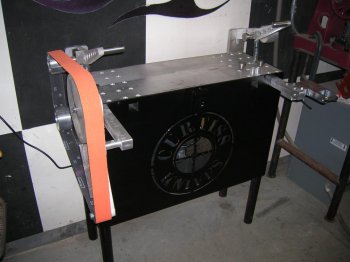

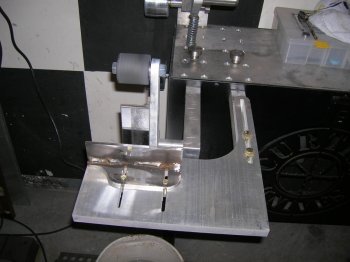

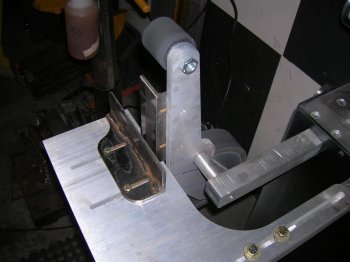

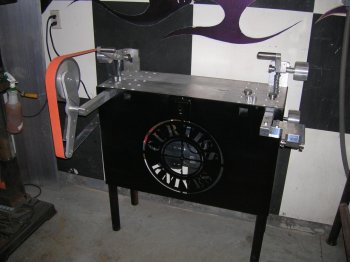

Here's my homemade grinder. One motor, two work stations. I run my rotary platen on one end with a 10" wheel, 2" wheel, slack and flat. On the other end I have a small wheel attachment. Gets the job done. cool 1



[CShepherd]

I have built the NWGS and as far as grinders go, it's a normal configuration.

The only major thing I did different was to cut out a section of the side plate on the flat platten attachment so I can remove the actual platten and have a slack belt. I'm pretty poor and couldn't afford the extra wheels anytime soon.

Seems to work very well and gives me more than enough slack belt room for convex grinds and sharpening.

Charlie



[Calvin Robinson]

My Bader3, Riverside machine disk grinder and my own design and built HEG( Horizontal Edge Grinder), and surface grinder I converted to a belt grinder.



[Paul Mathews]

Almost embarassed to post it, but you have to start somewhere.

No need to be embarrassed; that's not bad for a starter grinder. I started on a 1x30 Harbor Freight before moving "up" to a Grizzly



[deker]

Wouldn't be a grinder thread without a link to my infamous grinder build thread.



-d



[Curtiss Knives]

Deker, post some pics of that sucker! 2thumbs



[BossDog]

there are more than 7 grinders here... this can't be the worlds best thread with 7 grinders... take pics and post them..
woof..



[deker]

Deker, post some pics of that sucker! 2thumbs

Looks like the pics in the linked thread were broken. I fixed 'em. There's WAAAAY too many pics of the process there to repost here.

-d



[Meridian Blades]

Black Betty....

Black Betty....



[BossDog]

Is that Stones sticker on the side?



[Meridian Blades]

You betcha......its not complete without that. 2thumbs
